去间接跳转——模拟执行学习

间接跳转这个高级混淆，接触了unicorn，unidbg这种模拟执行脚本后，发现这种特别适合对抗反编译器无法分辨的一些混淆，本文记录学习过程以及以京麒2024的drillbeam为样本尝试去去除间接跳转。笔者的脚本能力确实有限，写的不好的地方大佬们勿喷（

样本

unsigned char dizhi[] = { 0x1,0x2,0x3,0x4,0x5 };
void rc4_crypt(unsigned char* Data, unsigned long Len_D, unsigned char* key, unsigned long Len_k) //加解密
{
	unsigned char s[256];
	rc4_init(s, key, Len_k);
	_asm {
		lea eax, label1
		add eax,8
		sub eax,7
		push ebx
		mov ebx,OFFSET dizhi
		movzx ecx,byte ptr [ebx+2]
		pop ebx
		add eax, ecx
		jmp eax
	label1:
		_emit 0x90
		_emit 0x90
		_emit 0x90
		_emit 0x90

	}

如上的样本就是经典的间接跳转混淆，这种jmp eax，可以让反编译工具无法计算跳转的地址，导致反编译出错，这种混淆手段在vmp中也有体现，我们分别看看这个在ida和bn的效果

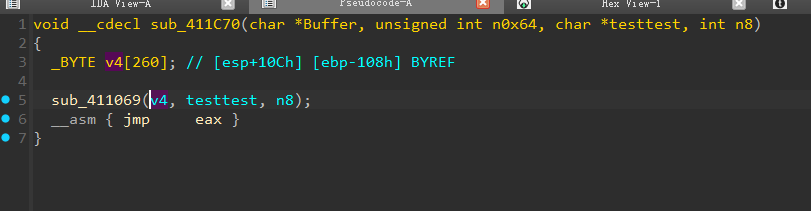

ida：

直接导致cfg丢失

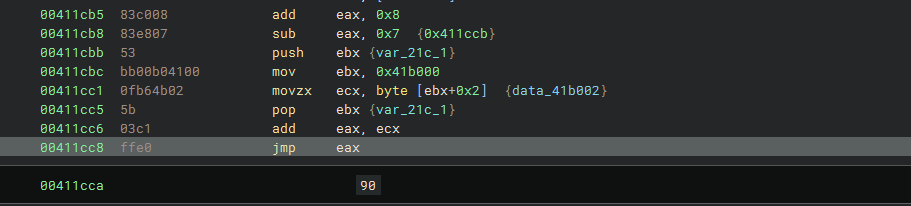

bn:

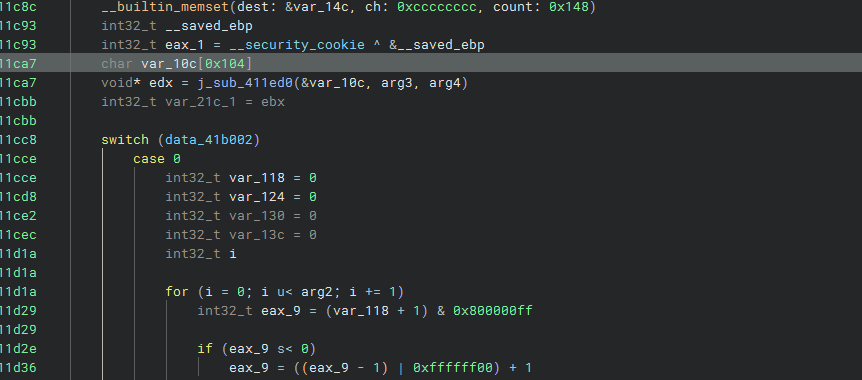

bn虽然能分析个大概，不过好像仍然有问题，这里粗暴的把查表的操作分析成了switch

不过有办法

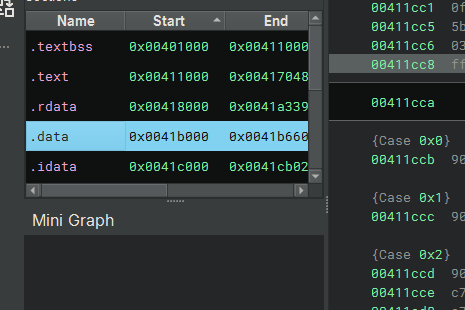

把data段改成只读

就可以正常分析了，因为计算地址存储在了data段（比如我这里的查表），反编译器不会去解析data段的数据，因为data段默认可写，导致被引用都的值被看作的是变量而非常量，阻止了常量传播，设置为可读的话，bn会去把data段看成常量，这也的话动态分析就可能解析出跳转的地址，但是这种方法并不高枕无忧，还是会存在问题

解决手段

对于一般的ctf题的话，可能就只会存在一两种间接跳转的计算方式，这个时候我们就可以手动计算出然后写脚本简单去除就行，但是我们把情况放极端一点，如果一个程序充斥着几千种不重样的间接跳转，或者说ollvm里面还嵌套了间接跳转的话，挨个计算然后去除岂不是效率低

回到手动计算，总之就是计算，有没有自动化工具计算然后识别，然后去除，这不就满足了我们手动计算->ida脚本去除的完整过程了吗

这种一般就是模拟执行的过程，模拟执行的框架一般有unicorn unidbg qiling angr等等，我写unidbg要稍微多一点

• unicorn可以看成裸的CPU，只给了CPU+内存+hook，不给os…..
• Qiling有系统调用API，可以做到迷你OS
• unidbg对于模拟安卓的so很友好，因为补齐了linker，JNI等等
• angr就是符号执行，路径探索，约束求解等等

这几种可以说是都在unicorn基础上成立的，为了更加理解这种去除思路，故用unicorn写一下，而且unicorn更适合跑指令

unicorn基本使用

我们先模拟执行一下这两条指令体会一下

from unicorn import *
from unicorn.x86_const import *
#导入ARM平台寄存器常量和核心API

x86code=b'\x83\xC0\x08\x83\xE8\x07'


def hook_code(uc,address,size,user_data):
    print("Tracing instruction at 0x%x, instruction size = 0x%x" %(address, size))
try:
    mu=Uc(UC_ARCH_X86,UC_MODE_32)
    ADDRESS=0x10000
    mu.mem_map(ADDRESS,0x1000) #映射内存
    mu.mem_write(ADDRESS,x86code)#指令载入内存
    mu.reg_write(UC_X86_REG_EAX,0x3)


    mu.hook_add(UC_HOOK_CODE,hook_code,begin=ADDRESS,end=ADDRESS)

    mu.emu_start(ADDRESS,ADDRESS+len(x86code))

    rax=mu.reg_read(UC_X86_REG_EAX)
    print("rax =0x%x" % rax)
except UcError as e:
    print("ERROR %s" %e)

#Tracing instruction at 0x10000, instruction size = 0x3
#rax =0x4

可以很好的模拟出结果

可是unicorn是纯裸的CPU，意味着我们如果暴力的把整个exe直接载入CPU的内存里，一般是运行不起来的，还需要对一些系统函数进行重定位的操作

最小化demo模拟去除

我们先假设只有一个间接跳转，先试着模拟一下

对于这种只有一个的话，我们的模拟手段就很简单的，因为我们已经找到了间接跳转的位置，所以自然可以找到需要模拟开始的地址以及结束地址，但是，这一路也不能直接裸调用，因为可以看到这里的查表操作是涉及到了读取数据段的东西了，我选择的是直接载入整个exe，然后单个开机模拟执行一段即可

1.映射并解析整个PE

模拟PE的话，跟我在模拟ELF是不一样的，ELF我模拟的时候，基地址设置0，然后模拟区间和ida看到的偏移一样即可，但是PE文件不一样，因为PE的RAW和RVA是按照节表换算的

pe = pefile.PE(PATH)
mu = Uc(UC_ARCH_X86, UC_MODE_32)

image_base = pe.OPTIONAL_HEADER.ImageBase
image_size= align_up(pe.OPTIONAL_HEADER.SizeOfImage)
mu.mem_map(image_base, image_size)

for s in pe.sections:
    va = image_base + s.VirtualAddress
    raw= s.get_data()
    size= align_up(max(s.Misc_VirtualSize, s.SizeOfRawData))
    mu.mem_write(va, raw + b"\x00" * (size - len(raw)))

2.映射栈

stack_bae=0x30000000
stack_size = 0x100000
mu.mem_map(stack_bae, stack_size)
mu.reg_write(UC_X86_REG_EBP, stack_bae + stack_size)
mu.reg_write(UC_X86_REG_ESP, stack_bae + stack_size - 0x4)

这里是把栈映射进去，把这个映射进去也是模拟栈帧创建，局部变量等等，这里减少4是为了防止栈崩掉

3.安装hook

mu.hook_add(UC_HOOK_CODE, hook_code)
def hook_code(uc,address,size,user_data):
    print("Tracing instruction at 0x%x, instruction size = 0x%x eax=0x%x" %(address, size,mu.reg_read(UC_X86_REG_EAX)))

方便我们看到是哪条指令崩掉了，快速查找或者看值

4.开机（

begin = image_base + 0x11CAF
end   = image_base + 0x11CC8
print(mu.mem_read(begin, 8).hex())
mu.emu_start(begin, end)
eax=mu.reg_read(UC_X86_REG_EAX)
print("eax=0x%x" %eax)

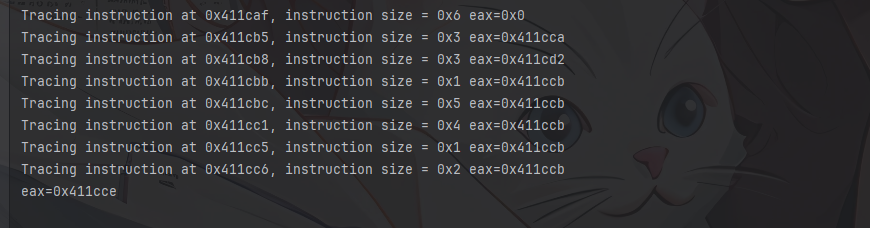

这样可以看到已经完成了模拟

5.patch

现在我们可以加一点东西了，首先，需要知道何时去patch，这里我们可以用到反汇编引擎，去识别到jmp eax，然后直接改成jmp xxxx

machine=mu.mem_read(address,size)
code=md.disasm(machine,address)
for ins in code:
    if ins.mnemonic =="jmp":
        if ins.op_str=="eax":
            print(f"{ins.mnemonic} {ins.op_str}")
            print("eax" ,mu.reg_read(UC_X86_REG_EAX))

            right_m=mu.reg_read(UC_X86_REG_EAX)
            right_rell=right_m-address-5
            new=b"\xE9"+right_rell.to_bytes(4,"little")
            n=md.disasm(new,address)
            for nn in n:
                print("plcae-> "f"{nn.mnemonic} {nn.op_str}")


# jmp eax
# eax 4267214
# plcae-> jmp 0x411cce

这里涉及到了keystone和capstone，感觉只要是模拟执行都绕不过这两个东西

上面就是简单的修改，不过这种修改有个bug感觉，就是修改后的指令大小有一点怕覆盖下面如果有用的指令（当然这里不成立，因为下面四个字节都没用）

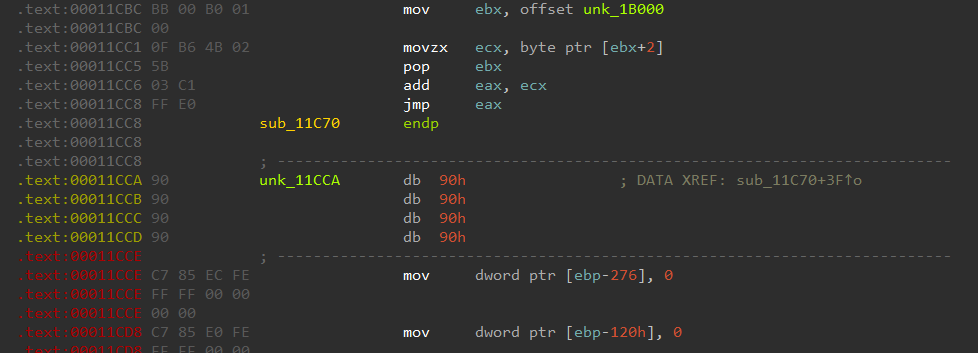

这里修好了，那如何去patch回文件呢

这里可以选择直接把unicorn的内存直接修改后复制到新文件

我们选择去把unicorn内存修改然后试着覆盖回程序

但是为了防止覆盖后面的指令，所以我们先设置一个可写区域

0x11CAF-0x11CC8其实都是可以随便修改的（根据间接跳转而不同）

总脚本

from unicorn import *
from unicorn.x86_const import *
import pefile, struct
from capstone import *
from keystone import *
def align_up(x, a=0x1000): return (x + a - 1) & ~(a - 1)

md = Cs(CS_ARCH_X86, CS_MODE_32)
ks = Ks(KS_ARCH_X86, KS_MODE_32)


PATH = r"D:\Android\unicorn-pandaos\sample\132.exe"

pe = pefile.PE(PATH)
mu = Uc(UC_ARCH_X86, UC_MODE_32)

image_base = pe.OPTIONAL_HEADER.ImageBase
image_size = align_up(pe.OPTIONAL_HEADER.SizeOfImage)


fix_ins=dict()
write_size=19
def patch(patch_byte):
    for address,dest in fix_ins.items():
        print("address->dest",hex(address),"->",hex(dest))
        start=address-write_size

        right_rell=dest-start-5
        new=b"\xE9"+right_rell.to_bytes(4,"little")
        n=md.disasm(new,start)
        for nn in n:
            print("plcae-> "f"{nn.mnemonic} {nn.op_str}")


        mu.mem_write(start,new)
        mu.mem_write(start+len(new),b"\x90"*(write_size))   #patch
        #print(mu.mem_read(start,30))


        src=bytearray(open(PATH,"rb").read())
        for s in pe.sections:
            raw_size=s.SizeOfRawData
            if raw_size==0:
                continue
            sec=image_base+s.VirtualAddress
            sec_off=s.PointerToRawData
            buf=mu.mem_read(sec,raw_size)
            src[sec_off:sec_off+raw_size]=buf

        with open(patch_byte,"wb") as f:
            f.write(src)
        print("dump")

def hook_memory(uc,access,address,size,value,userdata):
    pc=uc.reg_read(UC_X86_REG_EIP)
    print("memory error :pc %x address: %x size %x" %(pc,address,size))

def hook_code(uc,address,size,user_data):
    machine=mu.mem_read(address,size)
    code=md.disasm(machine,address)
    for ins in code:
        if ins.mnemonic =="jmp":
            if ins.op_str=="eax":
                print(f"{ins.mnemonic} {ins.op_str}")
                print("eax" ,mu.reg_read(UC_X86_REG_EAX))

                right_m=mu.reg_read(UC_X86_REG_EAX)
                # right_rell=right_m-address-5
                # new=b"\xE9"+right_rell.to_bytes(4,"little")
                # n=md.disasm(new,address)
                # for nn in n:
                #     print("plcae-> "f"{nn.mnemonic} {nn.op_str}")
                fix_ins[address]=right_m
                #mu.emu_stop()




    print("Tracing instruction at 0x%x, instruction size = 0x%x eax=0x%x" %(address, size,mu.reg_read(UC_X86_REG_EAX)))


try:


    mu.mem_map(image_base, image_size)

    for s in pe.sections:
        va = image_base + s.VirtualAddress
        raw= s.get_data()
        size= align_up(max(s.Misc_VirtualSize, s.SizeOfRawData))
        mu.mem_write(va, raw + b"\x00" * (size - len(raw)))


    stack_bae=0x30000000
    stack_size = 0x100000
    mu.mem_map(stack_bae, stack_size)
    mu.reg_write(UC_X86_REG_EBP, stack_bae + stack_size)
    mu.reg_write(UC_X86_REG_ESP, stack_bae + stack_size - 0x1000)

    begin = image_base + 0x11CAF
    end = image_base + 0x011CCe
    mu.hook_add(UC_HOOK_CODE, hook_code,begin=begin,end=end)
    mu.hook_add(UC_HOOK_MEM_UNMAPPED, hook_memory, 0)
    mu.reg_write(UC_X86_REG_EIP,image_base+0x011CAF)

    mu.emu_start(begin, end)
    eax=mu.reg_read(UC_X86_REG_EAX)

    patch_byte=PATH+"__pathced"
    patch(patch_byte)
except UcError as e:
    print(e)

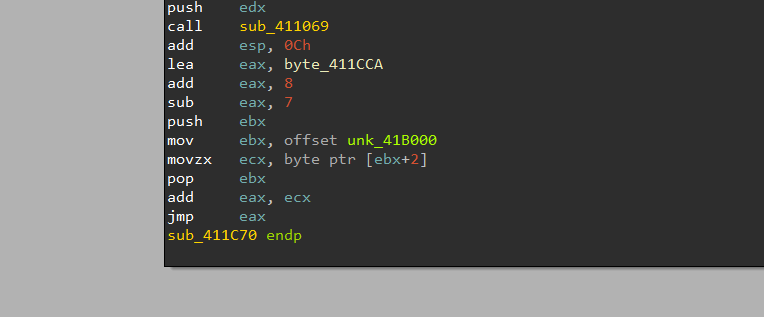

对比一下

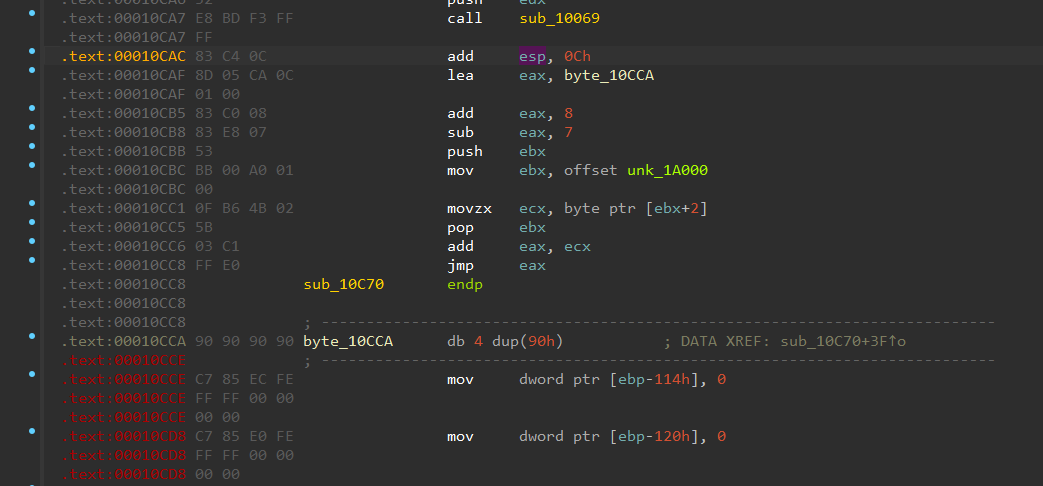

去除前

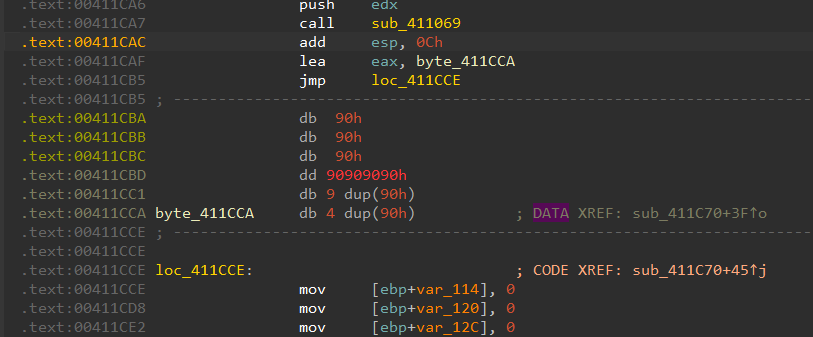

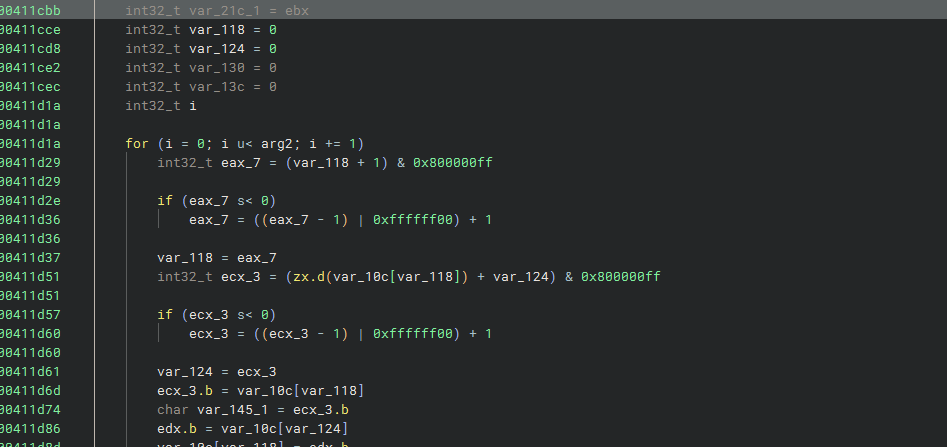

去除后

缺陷：以上只是简单的单个模拟，目的只是学习，缺陷也十分明显

第一是eax寄存器是固定的情况，当然可能会出现jmp ecx这种，如果为了更全面的考虑可以把所有通用寄存器都加入进去

第二是如果间接跳转存在条件判断的问题，例如arm的 CSEL和BR模式的话，也无能为力了

第三是回溯修改的区间被我固定了，如果遇到大小不一致的话，也很难去去除

京麒CTF2024 drillbeam

这个题是间接跳转+ollvm混淆，导致解题难度比较大，赛中尝试的是去用trace到每一个函数，然后挨个看，找到了xxtea加密，结合d810去混淆勉强能看，不过init_array也有间接跳转，而且是存在修改delta的操作的

这里我看了一个师傅的unidbg脚本去间接跳转和去平坦化

https://bbs.kanxue.com/thread-277086.htm

学习一下并且尝试为这个题写一下

注：这里只讨论如何去除间接跳转，不讨论做这个题的过程

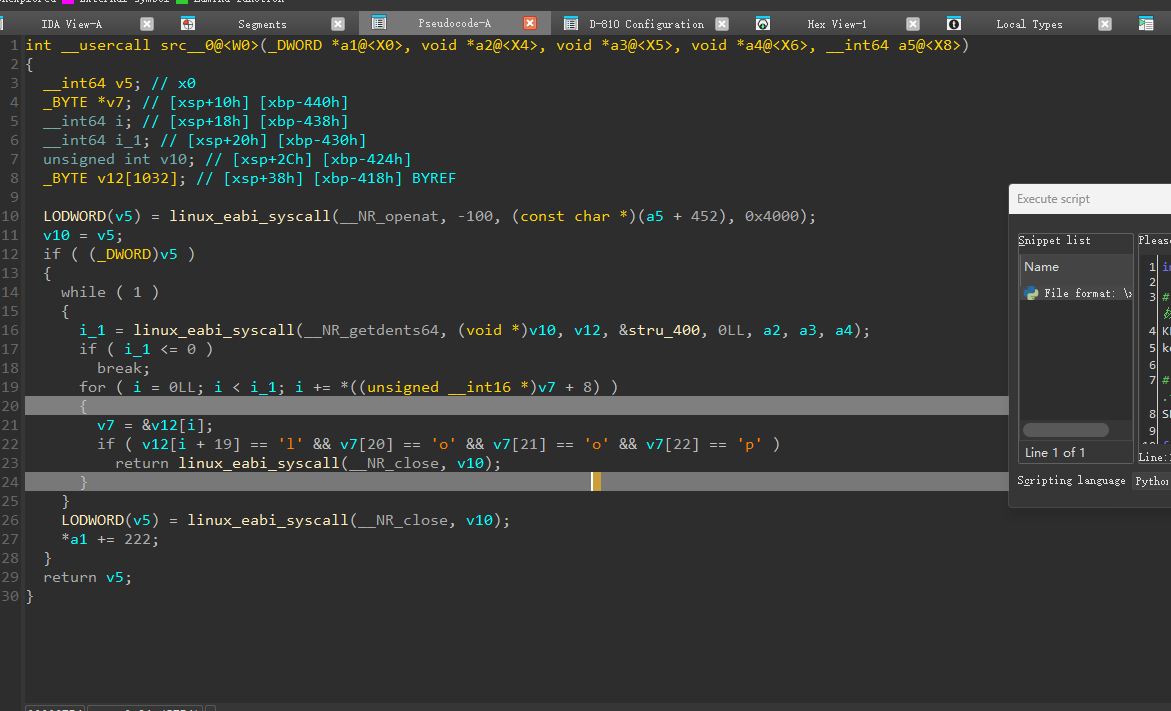

（含有检测模拟器的操作）

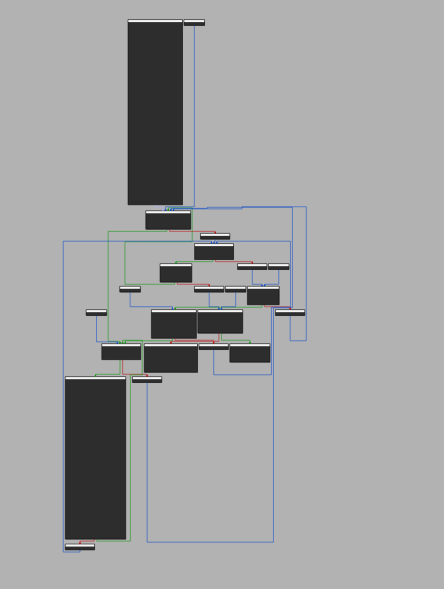

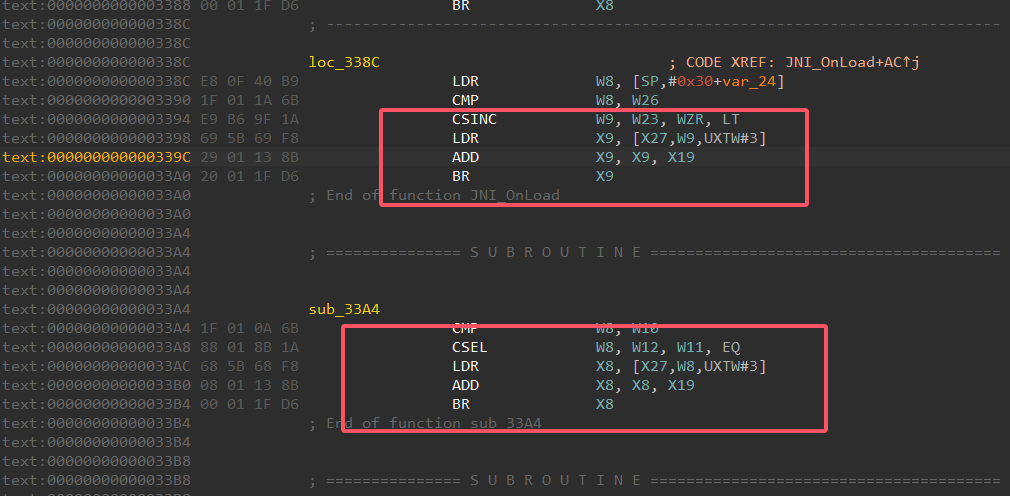

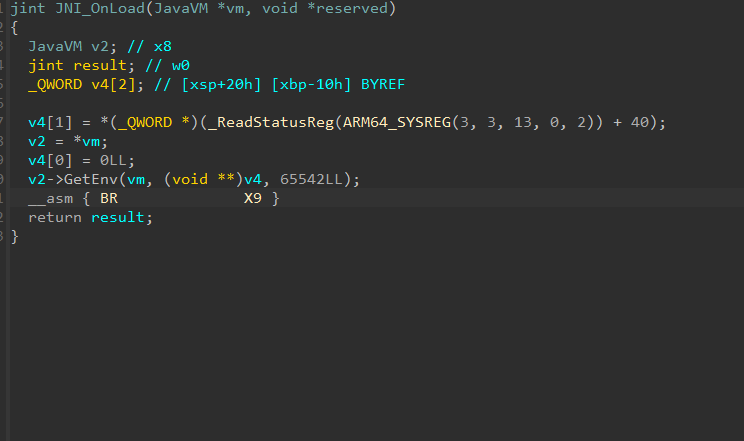

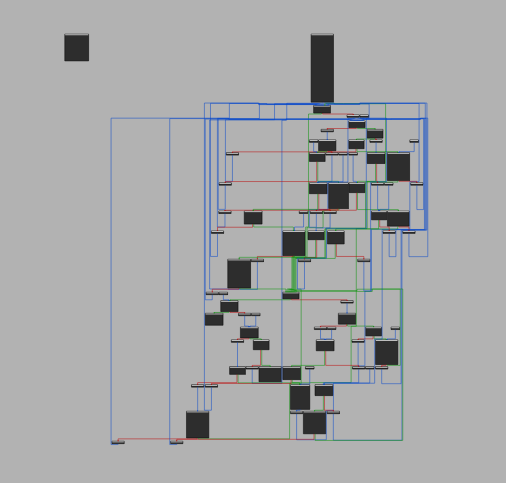

可以看到间接跳转数量多，而且是这种存在条件判断的，不能简单的去除，如果只是patch，cfg不会被修复

我们试一下unidbg而不是unicorn因为unidbg在模拟安卓层面可以让我们少走一些弯路

unidbg基础使用

像unidbg这种模拟执行框架，属于是比较成熟的了，可以帮我们完成so的加载和解析

初始化

public jingqi(){
    emulator=AndroidEmulatorBuilder.for64Bit()
    .addBackendFactory(new Unicorn2Factory(true))//后端，指令执行引擎
    .setProcessName("com.primite.drillbeam")
    .build();

    Memory memory =emulator.getMemory();
    //获取内存管理模块
    memory.setLibraryResolver(new AndroidResolver(23));
    vm= emulator.createDalvikVM(new File("D:\\下载\\ctf题目\\2025京麒杯\\drillbeam.apk"));
    vm.setJni(this);
    //将chal对象注册位JNI回调处理器
    vm.setVerbose(true);
    //打印DAlivik调用日志
    NativeApi =vm.resolveClass("com.primite.drillbeam.Check");
    DalvikModule dm= vm.loadLibrary("re0",true);


    Module module=dm.getModule();//获取.so的模块，可以调用方法



    dm.callJNI_OnLoad(emulator);
}

这里就是一些初始化的操作了，加载了模拟器，内存管理模块以及要调用的so模块，如果这里我们需要补充其他的so的加载，也只需要去加载一下就行了

Unidbg Trace

注意把代码放在loadlibrary之前

PrintStream pp= null;
try {
    pp = new PrintStream(new FileOutputStream(tracefile),true);
} catch (FileNotFoundException e) {
    throw new RuntimeException(e);
}
module = dm.getModule();
emulator.traceCode(module.base,module.base+module.size).setRedirect(pp);

这种trace手段的话，是有寄存器信息的，这里的setRedirect是设置重定向，把输出结果从默认的控制台保存到文本文件里面。

Trace init_array函数

memory.setCallInitFunction(true);
        memory.addModuleListener(new ModuleListener() {
            @Override
            public void onLoaded(Emulator<?> emulator, Module module) {
                if(module.name.contains("sunstring")){
                    try {
                        emulator.traceCode(module.base, module.base+module.size).setRedirect(new PrintStream(new FileOutputStream("trace111111.txt"),true));
                    } catch (FileNotFoundException e) {
                        e.printStackTrace();
                    }
                }
            }
        });

unidbg动态调试

1. 基于unicorn的console debugger同样不用管地址是否 + 1，会自己转换
2. 附加下断点
   Debugger debugger = emulator.attach();
debugger.addBreakPoint(module.base + 0x1AF4);
debugger.addBreakPoint(module.base + 0x1AEC);
3. emulator.attach支持几种调试方式，默认是console debugger
4. 类似IDA动态调试，断点触发后，会显示寄存器信息，汇编指令
5. 可以通过输入命令进行打印内存、写寄存器、跳到下一个断点、打印函数栈等操作
6. 回车两下或者随便输错一个指令，就会打印出命令的帮助信息
   b用于下断点（blr、b0x40228000）
   m用于读内存（mr0、mx0、m0x40228000、msp）
   bt用于查看函数栈
   c 跳到下一个断点
   s 单步调试

配合前面的init_array就可以成功调试init_array函数

hook

public void logIns()
{
    emulator.getBackend().hook_add_new(new CodeHook() {
        @Override
        public void hook(Backend backend, long address, int size, Object user)  {
            Capstone capstone = new Capstone(Capstone.CS_ARCH_ARM64,Capstone.CS_MODE_ARM);
            byte[] bytes = emulator.getBackend().mem_read(address, 4);
            Instruction[] disasm = capstone.disasm(bytes, 0);
            System.out.printf("%x:%s %s\n",address-module.base ,disasm[0].getMnemonic(),disasm[0].getOpStr());
        }

        @Override
        public void onAttach(UnHook unHook) {

        }

        @Override
        public void detach() {

        }
    }, module.base, module.base+module.size, null);
}

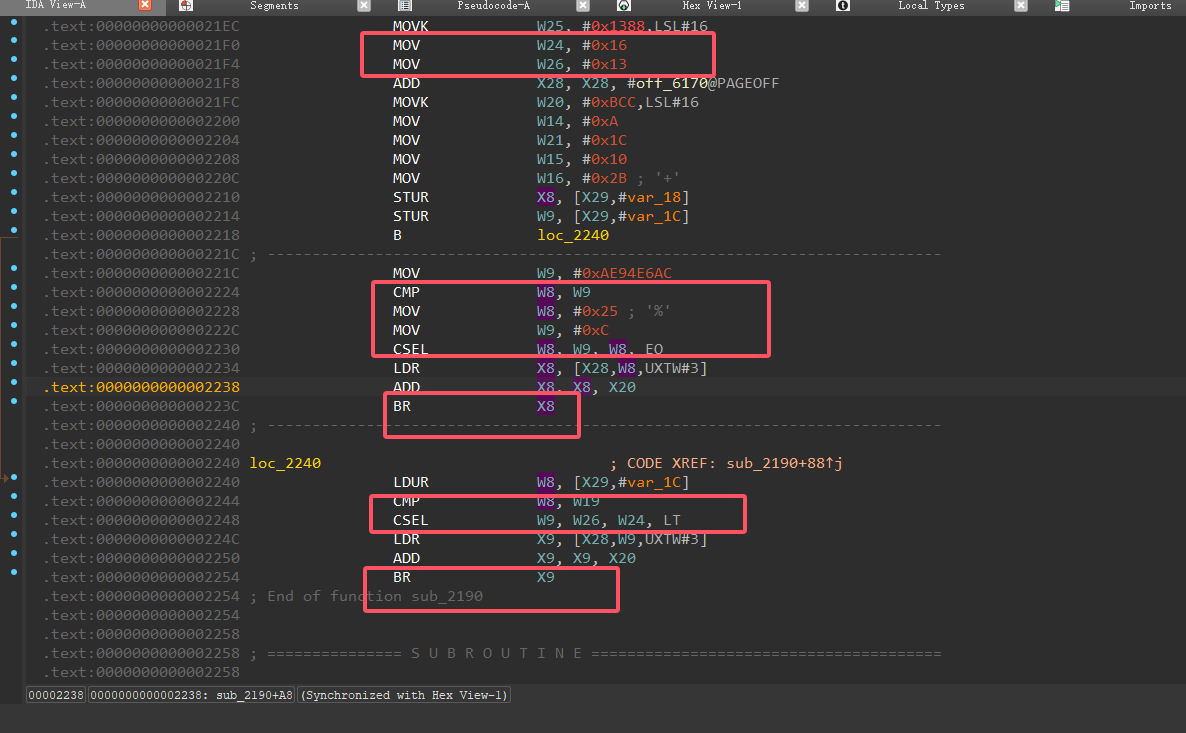

间接跳转分析

这一类的间接跳转感觉都比较相似

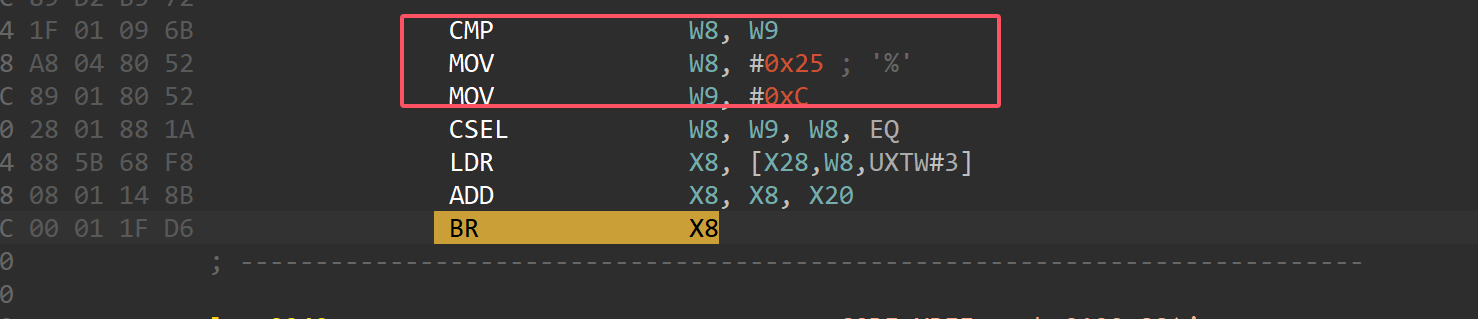

都是CMP CSEL的形式或者有

不过都是 比较，然后根据比较的结果选取值作为偏移，然后去查表加基址常量，然后br跳转

这种条件是不固定的话，我们就需要去计算不同情况下的跳转情况

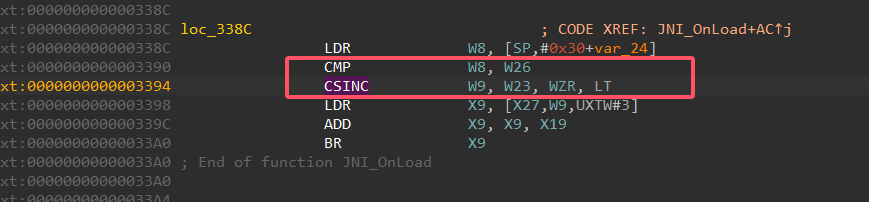

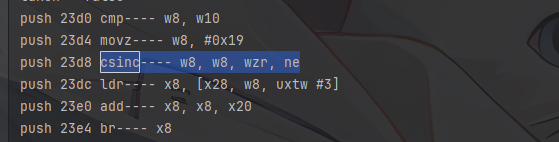

我们发现程序的间接跳转可以说有很多种，比如cmp到br之间有CSEL LT 和CSEL EQ CSINC NE

以及cmp和br中间还有有用的逻辑，但凡多patch一点，就会导致程序进入死循环，作者应该是采用了LLVM的间接跳转去替换掉了一些条件跳转，所以去除难道比较大，而且兼容必须要好才行，因为cmp到br之间的长度也不固定，计算方式不一样

去除思路

首先我们希望去除后的最好形式是

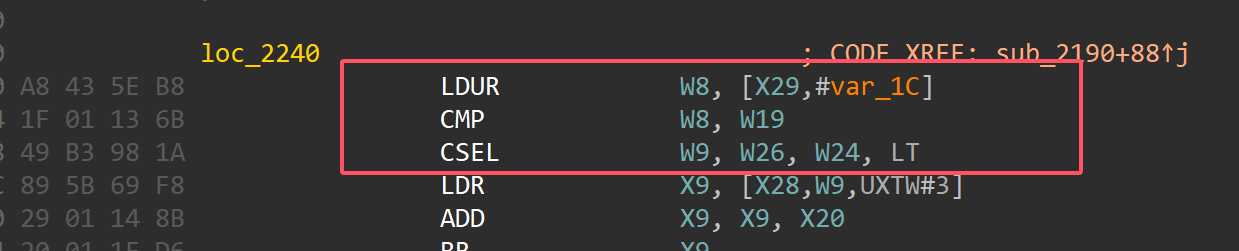

CMP             W8, W19
CSEL            W9, W26, W24, LT
LDR             X9, [X28,W9,UXTW#3]
ADD             X9, X9, X20
BR              X9

CMP             W8, W19
BLT              xxx
B                 xxxx
nop n

1.寻找到间接跳转，可以选择匹配到CMP之后向下找，找到CSEL BR就说明找到了间接跳转

2.模拟计算跳转地址，向下找到操作符LT，然后分w9两种情况去计算最后的跳转地址

3.patch cmp之后的知道BR

之所以采用第二个模拟器去模拟执行得到第二个结果，是因为计算的 话兼容性不太好，这里的计算寄存器种类多，而且还有多余的结果

1.trace拿到值

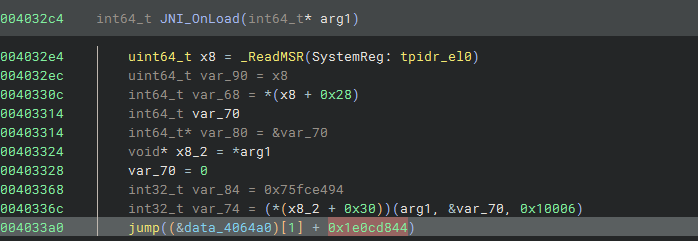

用bn试试

可以看到这里是有查表的操作的

package jingqi;
import capstone.Capstone;
import capstone.api.Instruction;
import com.alibaba.fastjson.util.IOUtils;
import com.alibaba.fastjson.util.ModuleUtil;
import com.github.unidbg.*;
import com.github.unidbg.arm.backend.Backend;
import com.github.unidbg.arm.backend.CodeHook;
import com.github.unidbg.arm.backend.UnHook;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.arm.context.Arm32RegisterContext;
import com.github.unidbg.arm.context.RegisterContext;
import com.github.unidbg.debugger.BreakPointCallback;
import com.github.unidbg.debugger.Debugger;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.memory.Memory;
import com.sun.jna.Pointer;
import sample.sample;
import unicorn.Arm64Const;
import unicorn.ArmConst;

import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.PrintStream;
import java.lang.annotation.Native;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;
import java.util.Stack;


public class jingqi extends AbstractJni {

    private static final java.util.Map<String, Integer> REG_MAP = new java.util.HashMap<>();

    static {
        // X0~X30
        REG_MAP.put("x0",  Arm64Const.UC_ARM64_REG_X0);
        REG_MAP.put("x1",  Arm64Const.UC_ARM64_REG_X1);
        REG_MAP.put("x2",  Arm64Const.UC_ARM64_REG_X2);
        REG_MAP.put("x3",  Arm64Const.UC_ARM64_REG_X3);
        REG_MAP.put("x4",  Arm64Const.UC_ARM64_REG_X4);
        REG_MAP.put("x5",  Arm64Const.UC_ARM64_REG_X5);
        REG_MAP.put("x6",  Arm64Const.UC_ARM64_REG_X6);
        REG_MAP.put("x7",  Arm64Const.UC_ARM64_REG_X7);
        REG_MAP.put("x8",  Arm64Const.UC_ARM64_REG_X8);
        REG_MAP.put("x9",  Arm64Const.UC_ARM64_REG_X9);
        REG_MAP.put("x10", Arm64Const.UC_ARM64_REG_X10);
        REG_MAP.put("x11", Arm64Const.UC_ARM64_REG_X11);
        REG_MAP.put("x12", Arm64Const.UC_ARM64_REG_X12);
        REG_MAP.put("x13", Arm64Const.UC_ARM64_REG_X13);
        REG_MAP.put("x14", Arm64Const.UC_ARM64_REG_X14);
        REG_MAP.put("x15", Arm64Const.UC_ARM64_REG_X15);
        REG_MAP.put("x16", Arm64Const.UC_ARM64_REG_X16);
        REG_MAP.put("x17", Arm64Const.UC_ARM64_REG_X17);
        REG_MAP.put("x18", Arm64Const.UC_ARM64_REG_X18);
        REG_MAP.put("x19", Arm64Const.UC_ARM64_REG_X19);
        REG_MAP.put("x20", Arm64Const.UC_ARM64_REG_X20);
        REG_MAP.put("x21", Arm64Const.UC_ARM64_REG_X21);
        REG_MAP.put("x22", Arm64Const.UC_ARM64_REG_X22);
        REG_MAP.put("x23", Arm64Const.UC_ARM64_REG_X23);
        REG_MAP.put("x24", Arm64Const.UC_ARM64_REG_X24);
        REG_MAP.put("x25", Arm64Const.UC_ARM64_REG_X25);
        REG_MAP.put("x26", Arm64Const.UC_ARM64_REG_X26);
        REG_MAP.put("x27", Arm64Const.UC_ARM64_REG_X27);
        REG_MAP.put("x28", Arm64Const.UC_ARM64_REG_X28);
        REG_MAP.put("x29", Arm64Const.UC_ARM64_REG_X29);
        REG_MAP.put("x30", Arm64Const.UC_ARM64_REG_X30);

        // W0~W30 (低 32 位寄存器)
        REG_MAP.put("w0",  Arm64Const.UC_ARM64_REG_W0);
        REG_MAP.put("w1",  Arm64Const.UC_ARM64_REG_W1);
        REG_MAP.put("w2",  Arm64Const.UC_ARM64_REG_W2);
        REG_MAP.put("w3",  Arm64Const.UC_ARM64_REG_W3);
        REG_MAP.put("w4",  Arm64Const.UC_ARM64_REG_W4);
        REG_MAP.put("w5",  Arm64Const.UC_ARM64_REG_W5);
        REG_MAP.put("w6",  Arm64Const.UC_ARM64_REG_W6);
        REG_MAP.put("w7",  Arm64Const.UC_ARM64_REG_W7);
        REG_MAP.put("w8",  Arm64Const.UC_ARM64_REG_W8);
        REG_MAP.put("w9",  Arm64Const.UC_ARM64_REG_W9);
        REG_MAP.put("w10", Arm64Const.UC_ARM64_REG_W10);
        REG_MAP.put("w11", Arm64Const.UC_ARM64_REG_W11);
        REG_MAP.put("w12", Arm64Const.UC_ARM64_REG_W12);
        REG_MAP.put("w13", Arm64Const.UC_ARM64_REG_W13);
        REG_MAP.put("w14", Arm64Const.UC_ARM64_REG_W14);
        REG_MAP.put("w15", Arm64Const.UC_ARM64_REG_W15);
        REG_MAP.put("w16", Arm64Const.UC_ARM64_REG_W16);
        REG_MAP.put("w17", Arm64Const.UC_ARM64_REG_W17);
        REG_MAP.put("w18", Arm64Const.UC_ARM64_REG_W18);
        REG_MAP.put("w19", Arm64Const.UC_ARM64_REG_W19);
        REG_MAP.put("w20", Arm64Const.UC_ARM64_REG_W20);
        REG_MAP.put("w21", Arm64Const.UC_ARM64_REG_W21);
        REG_MAP.put("w22", Arm64Const.UC_ARM64_REG_W22);
        REG_MAP.put("w23", Arm64Const.UC_ARM64_REG_W23);
        REG_MAP.put("w24", Arm64Const.UC_ARM64_REG_W24);
        REG_MAP.put("w25", Arm64Const.UC_ARM64_REG_W25);
        REG_MAP.put("w26", Arm64Const.UC_ARM64_REG_W26);
        REG_MAP.put("w27", Arm64Const.UC_ARM64_REG_W27);
        REG_MAP.put("w28", Arm64Const.UC_ARM64_REG_W28);
        REG_MAP.put("w29", Arm64Const.UC_ARM64_REG_W29);
        REG_MAP.put("w30", Arm64Const.UC_ARM64_REG_W30);

        // 特殊寄存器
        REG_MAP.put("sp",  Arm64Const.UC_ARM64_REG_SP);
        REG_MAP.put("wsp", Arm64Const.UC_ARM64_REG_WSP);
        REG_MAP.put("xzr", Arm64Const.UC_ARM64_REG_XZR);
        REG_MAP.put("wzr", Arm64Const.UC_ARM64_REG_WZR);
    }




    private final AndroidEmulator emulator;
    //模拟器对象，负责指令执行，内存管理，系统调用等
    private final DvmClass NativeApi;
    //调用的类
    public Module module;
    private final VM vm;
    //Dalvik VM环境，加载和运行APK/DEX代码
    public jingqi(){
        emulator=AndroidEmulatorBuilder.for64Bit()
                .addBackendFactory(new Unicorn2Factory(true))//后端，指令执行引擎
                .setProcessName("com.primite.drillbeam")
                .build();

        Memory memory =emulator.getMemory();
        //获取内存管理模块
        memory.setLibraryResolver(new AndroidResolver(23));
        vm= emulator.createDalvikVM(new File("D:\\下载\\ctf题目\\2025京麒杯\\drillbeam.apk"));
        vm.setJni(this);
        //将chal对象注册位JNI回调处理器
        vm.setVerbose(true);
        //打印DAlivik调用日志
        NativeApi =vm.resolveClass("com.primite.drillbeam.Check");
        memory.setCallInitFunction(true);
        memory.addModuleListener(new ModuleListener() {
            @Override
            public void onLoaded(Emulator<?> emulator, Module module) {
                if(module.name.contains("re0")){
                    lo1g(module);
                }
            }
        });
        DalvikModule dm= vm.loadLibrary("re0",true);
        module=dm.getModule();//获取.so的模块，可以调用方法

        Debugger debugger=emulator.attach();
        //debugger.addBreakPoint(module.base+0x33a4);


        dm.callJNI_OnLoad(emulator);
    }
    public String calls(){
        String arg1="aaaaaaaaaa";
        String ret = NativeApi.newObject(null).callJniMethodObject(emulator, "calc(Ljava/lang/String;)Ljava/lang/String;",arg1).getValue().toString();
        //如果是动态绑定的方法就需要写签名，而且可以在unidbg的执行流中找到这个签名（或者jadx切换位smail模式可以看到），如果目标方法是静态绑定的话可以直接传入方法名
        return ret;
    }
    public static void main(String []args){
        jingqi xv=new jingqi();
        xv.lo1g(xv.module);
        String result=xv.calls();
        System.out.println(result);
    }



    public void lo1g(Module module){
        emulator.getBackend().hook_add_new(new CodeHook() {
            @Override
            public void hook(Backend backend, long address, int size, Object user) {
                Capstone capstone=new Capstone(Capstone.CS_ARCH_ARM64,Capstone.CS_MODE_ARM);        //创建Capstone反汇编器实例
                byte[] bytes=emulator.getBackend().mem_read(address,4);                         //读取当前指 令的机器码
                Instruction[] disasm=capstone.disasm(bytes,0);                              //把bytes反汇编成Intstruction对象数组
                String machine=disasm[0].getMnemonic();

                if(machine.equals("br")){
                    String register=disasm[0].getOpStr().trim();
                    int  ID=REG_MAP.get(register);

                    RegisterContext registerContext=emulator.getContext();
                    long   value=registerContext.getLongByReg(ID)-module.base;

                    String hex=String.format("0x%06x",value);

                    int aaa= (int) (address-module.base);
                    System.out.println("0x"+Integer.toHexString(aaa) +" "+ disasm[0].getMnemonic()+ " " +disasm[0].getOpStr() +"----"+hex);
                }
            }
            @Override
            public void onAttach(UnHook unHook) {

            }
            @Override
            public void detach() {

            }
        },module.base,module.base+module.size,null);
    }

}

我们先简单的把包含这种间接跳转的trace出来，这种的话，其实是分两种情况的，第一张就是静态跳转，一个地址对应的跳转指令只有一个，另外一种就是一个地址对应了两个跳转逻辑，这种情况下想去patch成b xxx是会修改了逻辑的

但是发现其实大量的都是直接跳转，我们简单统计一下，然后把能改的直接改成 b xxx 试试

没啥效果啊。单纯改成这个B的话，只能改小部分，可是程序是有循环BR的，这就无法通用解决

2.收集

发现cmp csel之间有些长度不固定。比如

不能单一匹配连续，我这里把容错放到20长度

匹配到之后，cmp知道br 之间，每一条汇编指令，包括地址，汇编指令对应的寄存器的值封装成一个类对象然后放入栈里面

 public void brbr(Module module){
        emulator.getBackend().hook_add_new(new CodeHook() {
            @Override
            public void hook(Backend backend, long address, int size, Object user) {
                if(jingqi.haspatched.get(address)!=null ){
                    return;
                }
//                if(address-module.base<=0x2244||address-module.base>=0x2300){
//                    return;
//                }

                Capstone capstone;
                capstone=new Capstone(Capstone.CS_ARCH_ARM64,Capstone.CS_MODE_ARM);

                byte[] bytes=emulator.getBackend().mem_read(address,4);
                Instruction[] disasm=capstone.disasm(bytes,0);

                if(flagcsel==0&&(!disasm[0].getMnemonic().toLowerCase().equals("cmp"))){
                    return ;
                }

                if(flagcsel==1&&(disasm[0].getMnemonic().toLowerCase().equals("br"))){
                    Regs myReg=new Regs(address-module.base,emulator.getBackend());
                    instructAndReg ins=new instructAndReg(address-module.base,disasm,myReg);
                    System.out.println("push " + Long.toHexString(ins.address)+" "+disasm[0].getMnemonic() +"---- "+disasm[0].getOpStr());
                    st.add(ins);

                    String bropstr=disasm[0].getOpStr();
                    caluateClass clz=new caluateClass(st);
                    List <Integer> result=clz.caluate(emulator,module,bropstr);

                    flagcsel=0;
                    cselflag=0;
                }
                if(disasm[0].getMnemonic().toLowerCase().equals("cmp")){

                    int aaa=(int)(address-module.base);
                    // System.out.println("0x"+Integer.toHexString(aaa) +" "+ disasm[0].getMnemonic()+ " " +disasm[0].getOpStr());

                    int cnt=4;
                    while(cnt!=28)
                    {
                        if(address-module.base==0x024F4||address-module.base==0x2BBC||address- module.base==0x2838){  //对于没有被识别进去的过长指令可以采用这种直接手动设置的方式
                            flagcsel=1;
                            break;
                        }
                        long add=address+cnt;
                        long ss=add-module.base;
                        byte[] mach=emulator.getBackend().mem_read(add,4);
                        Instruction [] ddd=capstone.disasm(mach,0);
                        if (ddd == null || ddd.length == 0) {
                            break;
                        }
                        if (ddd[0].getMnemonic().equals("br") && cselflag == 0) {

                            break;
                        }
                        if(ddd[0].getMnemonic().equals("b")){
                            break;
                        }//||ddd[0].getMnemonic().equals("csinc")

                        if(ddd[0].getMnemonic().equals("csel")||ddd[0].getMnemonic().equals("csinc")||ddd[0].getMnemonic().equals("cinc")||ddd[0].getMnemonic().equals("cset")){
                            //System.out.println("ddd = " + ddd[0].getMnemonic() +"---- "+ddd[0].getOpStr());
                            cselflag=1;
                        }
                        if(cselflag==1&&ddd[0].getMnemonic().equals("br")){
                            flagcsel=1;
                        }

                        cnt+=4;
                    }
                    if(flagcsel==0){
                        cselflag=0;
                    }
                }
                if(flagcsel==1){

                    Regs myReg=new Regs(address-module.base,emulator.getBackend());

                    //List<Number> regs=myReg.getReg();
                    instructAndReg ins=new instructAndReg(address-module.base,disasm,myReg);

                    System.out.println("push " + Long.toHexString(ins.address)+" "+disasm[0].getMnemonic() +"---- "+disasm[0].getOpStr());
                    st.push(ins);
                }

            }
            @Override
            public void onAttach(UnHook unHook) {

            }
            @Override
            public void detach() {

            }
        },module.base,module.base+module.size,null);
    }
}

这里是把收集的代码写好了，这里注意unidbg的hook是链式的，我这里写两个hook无妨，下一步是如何模拟执行得到不同结果

如果存在cmp到br过长的情况的话也可以手动添加一段地址让它处于我们需要patch的区间

if(address-module.base==0x024F4||address-module.base==0x2BBC||address- module.base==0x2838){  //对于没有被识别进去的过长指令可以采用这种直接手动设置的方式
                          flagcsel=1;
                          break;
                      }

3.模拟执行得到不同的结果

之所以采用模拟执行去设置虚假条件得到第二个条件，是为了兼容不同寄存器计算的效果，以及多种计算方式的效果，所以兼容性比较高，但是效率就下降了

原本我是采用的递归去去除的，但是后面unidbg不太支持递归，故直接采用的开启一个unicorn模拟器去计算

class caluateClass{
    public Stack<instructAndReg> stk;
    public List<Integer> toAddress;
    public long  bAddress=0;
    public long ltAddress=0;
    public long brAddress=0;

    public caluateClass(Stack<instructAndReg> stk){
        this.stk=stk;
    }
    public boolean evalCond(String cond, long nzcv) {
        int N = (int) ((nzcv >> 31) & 1);
        int Z = (int) ((nzcv >> 30) & 1);
        int C = (int) ((nzcv >> 29) & 1);
        int V = (int) ((nzcv >> 28) & 1);

        cond = cond.toLowerCase();
        switch (cond) {
            case "eq": // equal
                return Z == 1;
            case "ne": // not equal
                return Z == 0;

            case "cs": // carry set (aka hs)
            case "hs":
                return C == 1;
            case "cc": // carry clear (aka lo)
            case "lo":
                return C == 0;

            case "mi": // minus
                return N == 1;
            case "pl": // plus
                return N == 0;

            case "vs": // overflow set
                return V == 1;
            case "vc": // overflow clear
                return V == 0;

            case "hi": // unsigned >
                return C == 1 && Z == 0;
            case "ls": // unsigned <=
                return C == 0 || Z == 1;

            case "ge": // signed >=
                return N == V;
            case "lt": // signed <
                return N != V;

            case "gt": // signed >
                return Z == 0 && N == V;
            case "le": // signed <=
                return Z == 1 || N != V;

            case "al": // always
                return true;

            default:
                throw new IllegalArgumentException("unknown cond: " + cond);
        }
    }

    public List<Integer> caluate(AndroidEmulator emulator,Module module,String bropstr){
        instructAndReg insReg=stk.pop();
        Regs regreg;
        String cond;
        Instruction [] ins =insReg.instructions;
        int number=Integer.parseInt(ins[0].getOpStr().substring(1));
        //System.out.println("br  " + ((long)insReg.regs.reg.get(number)-module.base));
        brAddress=((long)insReg.regs.reg.get(number)-module.base);  //计算出br的跳转地址
        long startAddress;
        long lastAddress=insReg.address;
        while(true){
            instructAndReg qiu=stk.pop();//||qiu.instructions[0].getMnemonic().equals("cset")
            if(qiu.instructions[0].getMnemonic().equals("csel")||qiu.instructions[0].getMnemonic().equals("csinc")||qiu.instructions[0].getMnemonic().equals("cinc")||qiu.instructions[0].getMnemonic().equals("cset")){
                //System.out.println(" "+ qiu.instructions[0].getOpStr());
                //System.out.println("w9 "+ qiu.regs.reg.get(9)+ "  "+"w26 "+qiu.regs.reg.get(26)+" w24 "+qiu.regs.reg.get(24));
                long cselAddress=qiu.address+module.base;
                long nzcv=qiu.regs.reg.get(31).longValue();
                String [] parts=qiu.instructions[0].getOpStr().split(", ");
                if(qiu.instructions[0].getMnemonic().equals("cinc")){
                    cond=parts[2].trim();
                }else if(qiu.instructions[0].getMnemonic().equals("cset")){
                    cond=parts[1].trim();
                }
                else {
                    cond = parts[3].trim();
                } boolean taken=evalCond(cond,nzcv);
                if(taken==true){
                    ltAddress=brAddress;
                }else{
                    bAddress=brAddress;
                }
                while(true){
                    instructAndReg cmp=stk.pop();
                    if(cmp.instructions[0].getMnemonic().equals("cmp")){

                        regreg=cmp.regs;
                        startAddress=cmp.address;
                        break;
                    }
                }

                byte[] bytes=emulator.getBackend().mem_read(startAddress+ module.base,(lastAddress-startAddress)+4);

                twice twoMi = new twice(
                        emulator,
                        bytes,
                        ltAddress,
                        bAddress,
                        regreg,
                        startAddress + module.base,
                        lastAddress + module.base,
                        bropstr,
                        module,
                        cond
                );


                if(cond.equals("lt")||cond.equals("eq")||cond.equals("ne")) {
                    Patch1 patch = new Patch1(
                            emulator,
                            bytes,
                            twoMi.ltAddress,
                            twoMi.bAddress,
                            startAddress + module.base,
                            lastAddress + module.base,
                            module,
                            cselAddress,
                            cond
                    );
                }
                for(long i=startAddress+module.base;i<=lastAddress+module.base;i++) {
                    jingqi.haspatched.put(i, 1);
                }
                System.out.println("taken = " + taken);
                break;
            }
        }




        return this.toAddress;
    }
}

class twice {
    long ltAddress, bAddress;
    long startAddress, endAddress;

    public twice(AndroidEmulator emulator,
                 byte[] bytes,
                 long ltAddress,
                 long bAddress,
                 Regs reg,
                 long startAddress,
                 long endAddress,
                 String bropstr,
                 Module module,
                 String cond
    ) {

        this.bAddress = bAddress;
        this.ltAddress = ltAddress;
        this.startAddress = startAddress; // 绝对地址
        this.endAddress = endAddress;     // 绝对地址

        Backend mainBackend = emulator.getBackend();
        Capstone capstone = new Capstone(Capstone.CS_ARCH_ARM64, Capstone.CS_MODE_ARM);
        Instruction[] ins = capstone.disasm(bytes, 0);

        for (Instruction i : ins) {
            System.out.println(" " + i.getMnemonic() + " " + i.getOpStr());
        }
        System.out.println("baddress->" + Long.toHexString(bAddress) +
                "   b.ltaddress->" + Long.toHexString(ltAddress));

        if (ins.length == 0 || !"cmp".equalsIgnoreCase(ins[0].getMnemonic())) {
            return;
        }

        long modBase = module.base;
        long modSize = module.size;

        long mapStart = modBase & ~0xfffL;
        long offset   = modBase - mapStart;
        long rawSize  = offset + modSize;
        long mapSize  = (rawSize + 0xfffL) & ~0xfffL;

        byte[] snapshot = mainBackend.mem_read(modBase, (int) modSize);

        byte[] patched = Arrays.copyOf(bytes, bytes.length);

        for (int i = 0; i < ins.length; i++) {
            String m = ins[i].getMnemonic().toLowerCase();
            int off = i * 4;

            if (i == 0 && m.equals("cmp")) {
                patched[off]     = 0x1f;
                patched[off + 1] = 0x20;
                patched[off + 2] = 0x03;
                patched[off + 3] = (byte) 0xd5;
                System.out.println("[twice] patch cmp -> nop");
                continue;
            }

            if (m.startsWith("str") || m.startsWith("stp") || m.startsWith("stur")) {
                patched[off]     = 0x1f;
                patched[off + 1] = 0x20;
                patched[off + 2] = 0x03;
                patched[off + 3] = (byte) 0xd5;
                System.out.println("[twice] patch store -> nop at ins#" + i + " (" + m + ")");
            }
        }

        int lastIndex = ins.length - 1;
        if (lastIndex >= 0) {
            String lastM = ins[lastIndex].getMnemonic().toLowerCase();
            if (lastM.equals("br")) {
                int off = lastIndex * 4;
                patched[off]     = 0x1f;
                patched[off + 1] = 0x20;
                patched[off + 2] = 0x03;
                patched[off + 3] = (byte) 0xd5;
                System.out.println("[twice] patch br -> nop at ins#" + lastIndex);
            }
        }

        Unicorn uc = new Unicorn(UnicornConst.UC_ARCH_ARM64, UnicornConst.UC_MODE_ARM);

        try {
            uc.mem_map(mapStart, mapSize, UnicornConst.UC_PROT_ALL);
            uc.mem_write(modBase, snapshot);

            uc.mem_write(startAddress, patched);

            for (int i = 0; i < 29; i++) {
                long v = reg.reg.get(i).longValue(); // 0..28 -> X0..X28
                uc.reg_write(Arm64Const.UC_ARM64_REG_X0 + i, v);
            }
            long fp = reg.reg.get(29).longValue();
            long lr = reg.reg.get(30).longValue();
            uc.reg_write(Arm64Const.UC_ARM64_REG_FP, fp);
            uc.reg_write(Arm64Const.UC_ARM64_REG_LR, lr);


            boolean realTaken = (this.ltAddress != 0);
            boolean wantTaken = !realTaken; // 在第二个引擎里我们要“走相反的那条路”

            long nzcvFake = buildNzcvFor(cond.toLowerCase(), wantTaken);
            uc.reg_write(Arm64Const.UC_ARM64_REG_NZCV, nzcvFake);


            uc.reg_write(Arm64Const.UC_ARM64_REG_PC, startAddress);


            uc.emu_start(startAddress, endAddress, 0, 50);

            String brRegName = bropstr.trim(); // "x9" / "x8" ...
            Integer brRegId = jingqi.REG_MAP.get(brRegName);
            if (brRegId == null) {
                System.out.println("[twice] unknown br reg: " + brRegName);
                return;
            }
            long aim = ((Number) uc.reg_read(brRegId)).longValue();
            long aa  = aim - module.base;

            System.out.printf("[twice] alt branch target reg=%s -> 0x%x (off=0x%x)%n",
                    brRegName, aim, aa);

            if (this.bAddress == 0) {
                this.bAddress = aa;
            } else if (this.ltAddress == 0) {
                this.ltAddress = aa;
            }
        } catch (Exception e) {
            System.out.println("[twice] emu error: " + e);
        } finally {
            try { uc.emu_stop(); } catch (Exception ignored) {}
            try { uc.mem_unmap(mapStart, mapSize); } catch (Exception ignored) {}
            try { uc.closeAll(); } catch (Exception ignored) {}
        }
    }


    private static long buildNzcvFor(String cond, boolean wantTrue) {
        int N = 0, Z = 0, C = 0, V = 0;

        switch (cond) {
            case "eq": // Z == 1
                Z = wantTrue ? 1 : 0;
                break;
            case "ne": // Z == 0
                Z = wantTrue ? 0 : 1;
                break;
            case "lt": // N != V
                if (wantTrue) {
                    N = 1; V = 0;
                } else {
                    N = 0; V = 0;
                }
                break;
            case "ge": // N == V
                if (wantTrue) {
                    N = 0; V = 0;
                } else {
                    N = 1; V = 0;
                }
                break;
            case "gt": // Z == 0 && N == V
                if (wantTrue) {
                    Z = 0; N = 0; V = 0;
                } else {
                    Z = 1; N = 0; V = 0;
                }
                break;
            case "le": // Z == 1 || N != V
                if (wantTrue) {
                    Z = 1;
                } else {
                    Z = 0; N = 0; V = 0;
                }
                break;
            case "cs":
            case "hs": // C == 1
                C = wantTrue ? 1 : 0;
                break;
            case "cc":
            case "lo": // C == 0
                C = wantTrue ? 0 : 1;
                break;
            case "mi": // N == 1
                N = wantTrue ? 1 : 0;
                break;
            case "pl": // N == 0
                N = wantTrue ? 0 : 1;
                break;
            case "vs": // V == 1
                V = wantTrue ? 1 : 0;
                break;
            case "vc": // V == 0
                V = wantTrue ? 0 : 1;
                break;
            case "hi": // C == 1 && Z == 0
                if (wantTrue) {
                    C = 1; Z = 0;
                } else {
                    C = 0; Z = 0;
                }
                break;
            case "ls": // C == 0 || Z == 1
                if (wantTrue) {
                    C = 0;
                } else {
                    C = 1; Z = 0;
                }
                break;
            case "al":
            default:
                Z = wantTrue ? 0 : 1;
                break;
        }

        return ((long) N << 31) |
                ((long) Z << 30) |
                ((long) C << 29) |
                ((long) V << 28);
    }

    // 现在已经不用这个函数了，但保留不会影响
    private static int parseRegIndex(String reg) {
        reg = reg.trim();
        if (reg.startsWith("w") || reg.startsWith("x")) {
            try {
                return Integer.parseInt(reg.substring(1));
            } catch (NumberFormatException e) {
                return -1;
            }
        }
        return -1;
    }
}

这里似乎有问题的代码，递归调用 了start了，出现了内部bug… 那就只有采用新的unicorn模拟器去模拟执行这一小段，直接拷贝unidbg的内存副本，直接映射到unicorn里面

采用unicorn去计算第二个结果

4.dump so

public void dumpSo(String origSoPath, String outSoPath) {
        try {
            java.nio.file.Files.copy(
                    java.nio.file.Paths.get(origSoPath),
                    java.nio.file.Paths.get(outSoPath),
                    java.nio.file.StandardCopyOption.REPLACE_EXISTING);

            Backend backend = emulator.getBackend();
            long base = module.base;

            try (java.io.RandomAccessFile raf = new java.io.RandomAccessFile(outSoPath, "rw")) {
                for (Long addr : jingqi.haspatched.keySet()) {

                    long fileOffset = addr - base;

                    byte[] b = backend.mem_read(addr, 4);

                    raf.seek(fileOffset);
                    raf.write(b);
                }
            }

            System.out.printf("[overlay dump] base=0x%x, patched bytes=%d -> %s%n",
                    base, jingqi.haspatched.size(), outSoPath);

        } catch (Exception e) {
            e.printStackTrace();
        }
    }

处理了csel eq/lt的代码

确实难，要处理情况，又要去处理逻辑分支，patch，勉强搓出来一个可以去除 cmp csel eq/lt br 的情况， 下面还有一个 CSINC 的情况，

问题

去除前后对比

前

后：

可以看到cfg算是恢复的很好的了，这题是存在ollvm平坦化

总脚本

package jingqi;
import capstone.Capstone;
import capstone.api.Instruction;
import capstone.api.RegsAccess;
import com.alibaba.fastjson.util.IOUtils;
import com.alibaba.fastjson.util.ModuleUtil;
import com.github.unidbg.*;
import com.github.unidbg.arm.backend.Backend;
import com.github.unidbg.arm.backend.CodeHook;
import com.github.unidbg.arm.backend.UnHook;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.arm.context.Arm32RegisterContext;
import com.github.unidbg.arm.context.RegisterContext;
import com.github.unidbg.debugger.BreakPointCallback;
import com.github.unidbg.debugger.Debugger;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.memory.Memory;
import com.sun.jna.Pointer;
import keystone.Keystone;
import keystone.KeystoneArchitecture;
import keystone.KeystoneMode;
import sample.sample;
import unicorn.*;

import javax.sound.midi.Patch;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.PrintStream;
import java.lang.annotation.Native;
import java.nio.charset.StandardCharsets;
import java.util.*;


public class jingqi extends AbstractJni {

    public  static final java.util.Map<String, Integer> REG_MAP = new java.util.HashMap<>();
    public  static final Map<Long, Integer> haspatched = new HashMap<>();

    static {
        // X0~X30
        REG_MAP.put("x0",  Arm64Const.UC_ARM64_REG_X0);
        REG_MAP.put("x1",  Arm64Const.UC_ARM64_REG_X1);
        REG_MAP.put("x2",  Arm64Const.UC_ARM64_REG_X2);
        REG_MAP.put("x3",  Arm64Const.UC_ARM64_REG_X3);
        REG_MAP.put("x4",  Arm64Const.UC_ARM64_REG_X4);
        REG_MAP.put("x5",  Arm64Const.UC_ARM64_REG_X5);
        REG_MAP.put("x6",  Arm64Const.UC_ARM64_REG_X6);
        REG_MAP.put("x7",  Arm64Const.UC_ARM64_REG_X7);
        REG_MAP.put("x8",  Arm64Const.UC_ARM64_REG_X8);
        REG_MAP.put("x9",  Arm64Const.UC_ARM64_REG_X9);
        REG_MAP.put("x10", Arm64Const.UC_ARM64_REG_X10);
        REG_MAP.put("x11", Arm64Const.UC_ARM64_REG_X11);
        REG_MAP.put("x12", Arm64Const.UC_ARM64_REG_X12);
        REG_MAP.put("x13", Arm64Const.UC_ARM64_REG_X13);
        REG_MAP.put("x14", Arm64Const.UC_ARM64_REG_X14);
        REG_MAP.put("x15", Arm64Const.UC_ARM64_REG_X15);
        REG_MAP.put("x16", Arm64Const.UC_ARM64_REG_X16);
        REG_MAP.put("x17", Arm64Const.UC_ARM64_REG_X17);
        REG_MAP.put("x18", Arm64Const.UC_ARM64_REG_X18);
        REG_MAP.put("x19", Arm64Const.UC_ARM64_REG_X19);
        REG_MAP.put("x20", Arm64Const.UC_ARM64_REG_X20);
        REG_MAP.put("x21", Arm64Const.UC_ARM64_REG_X21);
        REG_MAP.put("x22", Arm64Const.UC_ARM64_REG_X22);
        REG_MAP.put("x23", Arm64Const.UC_ARM64_REG_X23);
        REG_MAP.put("x24", Arm64Const.UC_ARM64_REG_X24);
        REG_MAP.put("x25", Arm64Const.UC_ARM64_REG_X25);
        REG_MAP.put("x26", Arm64Const.UC_ARM64_REG_X26);
        REG_MAP.put("x27", Arm64Const.UC_ARM64_REG_X27);
        REG_MAP.put("x28", Arm64Const.UC_ARM64_REG_X28);
        REG_MAP.put("x29", Arm64Const.UC_ARM64_REG_X29);
        REG_MAP.put("x30", Arm64Const.UC_ARM64_REG_X30);

        // W0~W30 (低 32 位寄存器)
        REG_MAP.put("w0",  Arm64Const.UC_ARM64_REG_W0);
        REG_MAP.put("w1",  Arm64Const.UC_ARM64_REG_W1);
        REG_MAP.put("w2",  Arm64Const.UC_ARM64_REG_W2);
        REG_MAP.put("w3",  Arm64Const.UC_ARM64_REG_W3);
        REG_MAP.put("w4",  Arm64Const.UC_ARM64_REG_W4);
        REG_MAP.put("w5",  Arm64Const.UC_ARM64_REG_W5);
        REG_MAP.put("w6",  Arm64Const.UC_ARM64_REG_W6);
        REG_MAP.put("w7",  Arm64Const.UC_ARM64_REG_W7);
        REG_MAP.put("w8",  Arm64Const.UC_ARM64_REG_W8);
        REG_MAP.put("w9",  Arm64Const.UC_ARM64_REG_W9);
        REG_MAP.put("w10", Arm64Const.UC_ARM64_REG_W10);
        REG_MAP.put("w11", Arm64Const.UC_ARM64_REG_W11);
        REG_MAP.put("w12", Arm64Const.UC_ARM64_REG_W12);
        REG_MAP.put("w13", Arm64Const.UC_ARM64_REG_W13);
        REG_MAP.put("w14", Arm64Const.UC_ARM64_REG_W14);
        REG_MAP.put("w15", Arm64Const.UC_ARM64_REG_W15);
        REG_MAP.put("w16", Arm64Const.UC_ARM64_REG_W16);
        REG_MAP.put("w17", Arm64Const.UC_ARM64_REG_W17);
        REG_MAP.put("w18", Arm64Const.UC_ARM64_REG_W18);
        REG_MAP.put("w19", Arm64Const.UC_ARM64_REG_W19);
        REG_MAP.put("w20", Arm64Const.UC_ARM64_REG_W20);
        REG_MAP.put("w21", Arm64Const.UC_ARM64_REG_W21);
        REG_MAP.put("w22", Arm64Const.UC_ARM64_REG_W22);
        REG_MAP.put("w23", Arm64Const.UC_ARM64_REG_W23);
        REG_MAP.put("w24", Arm64Const.UC_ARM64_REG_W24);
        REG_MAP.put("w25", Arm64Const.UC_ARM64_REG_W25);
        REG_MAP.put("w26", Arm64Const.UC_ARM64_REG_W26);
        REG_MAP.put("w27", Arm64Const.UC_ARM64_REG_W27);
        REG_MAP.put("w28", Arm64Const.UC_ARM64_REG_W28);
        REG_MAP.put("w29", Arm64Const.UC_ARM64_REG_W29);
        REG_MAP.put("w30", Arm64Const.UC_ARM64_REG_W30);

        // 特殊寄存器
        REG_MAP.put("sp",  Arm64Const.UC_ARM64_REG_SP);
        REG_MAP.put("wsp", Arm64Const.UC_ARM64_REG_WSP);
        REG_MAP.put("xzr", Arm64Const.UC_ARM64_REG_XZR);
        REG_MAP.put("wzr", Arm64Const.UC_ARM64_REG_WZR);
    }

    public static volatile boolean ISEMU=false;
    public int flagcsel=0;
    public int cselflag=0;
    Stack<instructAndReg> st = new Stack<instructAndReg>();
    private final AndroidEmulator emulator;
    //模拟器对象，负责指令执行，内存管理，系统调用等
    private final DvmClass NativeApi;
    //调用的类
    public Module module;
    private final VM vm;
    public jingqi(){
        emulator=AndroidEmulatorBuilder.for64Bit()
                .addBackendFactory(new Unicorn2Factory(true))//后端，指令执行引擎
                .setProcessName("com.primite.drillbeam")
                .build();

        Memory memory =emulator.getMemory();
        //获取内存管理模块
        memory.setLibraryResolver(new AndroidResolver(23));
        vm= emulator.createDalvikVM(new File("D:\\下载\\ctf题目\\2025京麒杯\\drillbeam.apk"));
        vm.setJni(this);
        //将chal对象注册位JNI回调处理器
        vm.setVerbose(true);
        //打印DAlivik调用日志
        NativeApi =vm.resolveClass("com.primite.drillbeam.Check");
        memory.setCallInitFunction(true);
        memory.addModuleListener(new ModuleListener() {
            @Override
            public void onLoaded(Emulator<?> emulator, Module module) {
                if(module.name.contains("re0")){
                    String tracefile="D:\\下载\\ctf题目\\2025京麒杯\\drillbeam\\lib\\arm64-v8a\\trace.txt";
                    PrintStream pp= null;
                    try {
                        pp = new PrintStream(new FileOutputStream(tracefile),true);
                    } catch (FileNotFoundException e) {
                        throw new RuntimeException(e);
                    }
                    //emulator.traceCode(module.base, module.base+module.size);
                    //lo1g(module);
                    brbr(module);
                    //Debugger debugger=emulator.attach();
                    //debugger.addBreakPoint(module.base+0x24F4);
                }
            }
        });
        DalvikModule dm= vm.loadLibrary("re0",true);
        module=dm.getModule();//获取.so的模块，可以调用方法

//        Debugger debugger=emulator.attach();
//        debugger.addBreakPoint(module.base+0x02224);

        dm.callJNI_OnLoad(emulator);
    }
    public String calls(){
        String arg1="aaaaaaaaaa";
        String ret = NativeApi.newObject(null).callJniMethodObject(emulator, "calc(Ljava/lang/String;)Ljava/lang/String;",arg1).getValue().toString();
        //如果是动态绑定的方法就需要写签名，而且可以在unidbg的执行流中找到这个签名（或者jadx切换位smail模式可以看到），如果目标方法是静态绑定的话可以直接传入方法名
        return ret;
    }

    public static void main(String []args){
        jingqi xv=new jingqi();
        String result=xv.calls();
        System.out.println(result);
        xv.dumpSo("D:\\下载\\ctf题目\\2025京麒杯\\drillbeam\\lib\\arm64-v8a\\libre0_brbr.so","D:\\下载\\ctf题目\\2025京麒杯\\drillbeam\\lib\\arm64-v8a\\111_path.so");
    }

   public void dumpSo(String origSoPath, String outSoPath) {
        try {
            java.nio.file.Files.copy(
                    java.nio.file.Paths.get(origSoPath),
                    java.nio.file.Paths.get(outSoPath),
                    java.nio.file.StandardCopyOption.REPLACE_EXISTING);

            Backend backend = emulator.getBackend();
            long base = module.base;

            try (java.io.RandomAccessFile raf = new java.io.RandomAccessFile(outSoPath, "rw")) {
                for (Long addr : jingqi.haspatched.keySet()) {

                    long fileOffset = addr - base;

                    byte[] b = backend.mem_read(addr, 4);

                    raf.seek(fileOffset);
                    raf.write(b);
                }
            }

            System.out.printf("[overlay dump] base=0x%x, patched bytes=%d -> %s%n",
                    base, jingqi.haspatched.size(), outSoPath);

        } catch (Exception e) {
            e.printStackTrace();
        }
    }



    public void brbr(Module module){
        emulator.getBackend().hook_add_new(new CodeHook() {
            @Override
            public void hook(Backend backend, long address, int size, Object user) {
                if(jingqi.haspatched.get(address)!=null ){
                    return;
                }
//                if(address-module.base<=0x2244||address-module.base>=0x2300){
//                    return;
//                }

                Capstone capstone;
                capstone=new Capstone(Capstone.CS_ARCH_ARM64,Capstone.CS_MODE_ARM);

                byte[] bytes=emulator.getBackend().mem_read(address,4);
                Instruction[] disasm=capstone.disasm(bytes,0);

                if(flagcsel==0&&(!disasm[0].getMnemonic().toLowerCase().equals("cmp"))){
                    return ;
                }

                if(flagcsel==1&&(disasm[0].getMnemonic().toLowerCase().equals("br"))){
                    Regs myReg=new Regs(address-module.base,emulator.getBackend());
                    instructAndReg ins=new instructAndReg(address-module.base,disasm,myReg);
                    System.out.println("push " + Long.toHexString(ins.address)+" "+disasm[0].getMnemonic() +"---- "+disasm[0].getOpStr());
                    st.add(ins);

                    String bropstr=disasm[0].getOpStr();
                    caluateClass clz=new caluateClass(st);
                    List <Integer> result=clz.caluate(emulator,module,bropstr);

                    flagcsel=0;
                    cselflag=0;
                }
                if(disasm[0].getMnemonic().toLowerCase().equals("cmp")){

                    int aaa=(int)(address-module.base);
                    // System.out.println("0x"+Integer.toHexString(aaa) +" "+ disasm[0].getMnemonic()+ " " +disasm[0].getOpStr());

                    int cnt=4;
                    while(cnt!=28)
                    {
                        if(address-module.base==0x024F4||address-module.base==0x2BBC||address- module.base==0x2838){  //对于没有被识别进去的过长指令可以采用这种直接手动设置的方式
                            flagcsel=1;
                            break;
                        }
                        long add=address+cnt;
                        long ss=add-module.base;
                        byte[] mach=emulator.getBackend().mem_read(add,4);
                        Instruction [] ddd=capstone.disasm(mach,0);
                        if (ddd == null || ddd.length == 0) {
                            break;
                        }
                        if (ddd[0].getMnemonic().equals("br") && cselflag == 0) {

                            break;
                        }
                        if(ddd[0].getMnemonic().equals("b")){
                            break;
                        }//||ddd[0].getMnemonic().equals("csinc")

                        if(ddd[0].getMnemonic().equals("csel")||ddd[0].getMnemonic().equals("csinc")||ddd[0].getMnemonic().equals("cinc")||ddd[0].getMnemonic().equals("cset")){
                            //System.out.println("ddd = " + ddd[0].getMnemonic() +"---- "+ddd[0].getOpStr());
                            cselflag=1;
                        }
                        if(cselflag==1&&ddd[0].getMnemonic().equals("br")){
                            flagcsel=1;
                        }

                        cnt+=4;
                    }
                    if(flagcsel==0){
                        cselflag=0;
                    }
                }
                if(flagcsel==1){

                    Regs myReg=new Regs(address-module.base,emulator.getBackend());

                    //List<Number> regs=myReg.getReg();
                    instructAndReg ins=new instructAndReg(address-module.base,disasm,myReg);

                    System.out.println("push " + Long.toHexString(ins.address)+" "+disasm[0].getMnemonic() +"---- "+disasm[0].getOpStr());
                    st.push(ins);
                }

            }
            @Override
            public void onAttach(UnHook unHook) {

            }
            @Override
            public void detach() {

            }
        },module.base,module.base+module.size,null);
    }
}
class Regs{
    public long RegAddress;
    public List<Number> reg;
    public List<byte[]> vec;
    public Regs(long address,Backend bk){
        this.RegAddress=address;
        List<Number> nb = new ArrayList<>();
        for(int i=0;i<29;i++)
        {
            nb.add(bk.reg_read(i+ Arm64Const.UC_ARM64_REG_X0));
        }
        nb.add(bk.reg_read(Arm64Const.UC_ARM64_REG_FP));
        nb.add(bk.reg_read(Arm64Const.UC_ARM64_REG_LR));
        nb.add(bk.reg_read(Arm64Const.UC_ARM64_REG_NZCV));
        this.reg=nb;

    }

    public List<Number> getReg(){
        return this.reg;
    }

}

class instructAndReg{
    public long address;
    public Instruction[] instructions;
    public Regs regs;
    public instructAndReg(long address,Instruction[] instructions,Regs regs){
        this.address=address;
        this.instructions=instructions;
        this.regs=regs;
    }
}

class caluateClass{
    public Stack<instructAndReg> stk;
    public List<Integer> toAddress;
    public long  bAddress=0;
    public long ltAddress=0;
    public long brAddress=0;

    public caluateClass(Stack<instructAndReg> stk){
        this.stk=stk;
    }
    public boolean evalCond(String cond, long nzcv) {
        int N = (int) ((nzcv >> 31) & 1);
        int Z = (int) ((nzcv >> 30) & 1);
        int C = (int) ((nzcv >> 29) & 1);
        int V = (int) ((nzcv >> 28) & 1);

        cond = cond.toLowerCase();
        switch (cond) {
            case "eq": // equal
                return Z == 1;
            case "ne": // not equal
                return Z == 0;

            case "cs": // carry set (aka hs)
            case "hs":
                return C == 1;
            case "cc": // carry clear (aka lo)
            case "lo":
                return C == 0;

            case "mi": // minus
                return N == 1;
            case "pl": // plus
                return N == 0;

            case "vs": // overflow set
                return V == 1;
            case "vc": // overflow clear
                return V == 0;

            case "hi": // unsigned >
                return C == 1 && Z == 0;
            case "ls": // unsigned <=
                return C == 0 || Z == 1;

            case "ge": // signed >=
                return N == V;
            case "lt": // signed <
                return N != V;

            case "gt": // signed >
                return Z == 0 && N == V;
            case "le": // signed <=
                return Z == 1 || N != V;

            case "al": // always
                return true;

            default:
                throw new IllegalArgumentException("unknown cond: " + cond);
        }
    }

    public List<Integer> caluate(AndroidEmulator emulator,Module module,String bropstr){
        instructAndReg insReg=stk.pop();
        Regs regreg;
        String cond;
        Instruction [] ins =insReg.instructions;
        int number=Integer.parseInt(ins[0].getOpStr().substring(1));
        //System.out.println("br  " + ((long)insReg.regs.reg.get(number)-module.base));
        brAddress=((long)insReg.regs.reg.get(number)-module.base);  //计算出br的跳转地址
        long startAddress;
        long lastAddress=insReg.address;
        while(true){
            instructAndReg qiu=stk.pop();//||qiu.instructions[0].getMnemonic().equals("cset")
            if(qiu.instructions[0].getMnemonic().equals("csel")||qiu.instructions[0].getMnemonic().equals("csinc")||qiu.instructions[0].getMnemonic().equals("cinc")||qiu.instructions[0].getMnemonic().equals("cset")){
                //System.out.println(" "+ qiu.instructions[0].getOpStr());
                //System.out.println("w9 "+ qiu.regs.reg.get(9)+ "  "+"w26 "+qiu.regs.reg.get(26)+" w24 "+qiu.regs.reg.get(24));
                long cselAddress=qiu.address+module.base;
                long nzcv=qiu.regs.reg.get(31).longValue();
                String [] parts=qiu.instructions[0].getOpStr().split(", ");
                if(qiu.instructions[0].getMnemonic().equals("cinc")){
                    cond=parts[2].trim();
                }else if(qiu.instructions[0].getMnemonic().equals("cset")){
                    cond=parts[1].trim();
                }
                else {
                    cond = parts[3].trim();
                } boolean taken=evalCond(cond,nzcv);
                if(taken==true){
                    ltAddress=brAddress;
                }else{
                    bAddress=brAddress;
                }
                while(true){
                    instructAndReg cmp=stk.pop();
                    if(cmp.instructions[0].getMnemonic().equals("cmp")){

                        regreg=cmp.regs;
                        startAddress=cmp.address;
                        break;
                    }
                }

                byte[] bytes=emulator.getBackend().mem_read(startAddress+ module.base,(lastAddress-startAddress)+4);

                twice twoMi = new twice(
                        emulator,
                        bytes,
                        ltAddress,
                        bAddress,
                        regreg,
                        startAddress + module.base,
                        lastAddress + module.base,
                        bropstr,
                        module,
                        cond
                );


                if(cond.equals("lt")||cond.equals("eq")||cond.equals("ne")) {
                    Patch1 patch = new Patch1(
                            emulator,
                            bytes,
                            twoMi.ltAddress,
                            twoMi.bAddress,
                            startAddress + module.base,
                            lastAddress + module.base,
                            module,
                            cselAddress,
                            cond
                    );
                }
                for(long i=startAddress+module.base;i<=lastAddress+module.base;i++) {
                    jingqi.haspatched.put(i, 1);
                }
                System.out.println("taken = " + taken);
                break;
            }
        }




        return this.toAddress;
    }
}

class twice {
    long ltAddress, bAddress;
    long startAddress, endAddress;

    public twice(AndroidEmulator emulator,
                 byte[] bytes,
                 long ltAddress,
                 long bAddress,
                 Regs reg,
                 long startAddress,
                 long endAddress,
                 String bropstr,
                 Module module,
                 String cond
    ) {

        this.bAddress = bAddress;
        this.ltAddress = ltAddress;
        this.startAddress = startAddress; // 绝对地址
        this.endAddress = endAddress;     // 绝对地址

        Backend mainBackend = emulator.getBackend();
        Capstone capstone = new Capstone(Capstone.CS_ARCH_ARM64, Capstone.CS_MODE_ARM);
        Instruction[] ins = capstone.disasm(bytes, 0);

        for (Instruction i : ins) {
            System.out.println(" " + i.getMnemonic() + " " + i.getOpStr());
        }
        System.out.println("baddress->" + Long.toHexString(bAddress) +
                "   b.ltaddress->" + Long.toHexString(ltAddress));

        if (ins.length == 0 || !"cmp".equalsIgnoreCase(ins[0].getMnemonic())) {
            return;
        }

        long modBase = module.base;
        long modSize = module.size;

        long mapStart = modBase & ~0xfffL;
        long offset   = modBase - mapStart;
        long rawSize  = offset + modSize;
        long mapSize  = (rawSize + 0xfffL) & ~0xfffL;

        byte[] snapshot = mainBackend.mem_read(modBase, (int) modSize);

        byte[] patched = Arrays.copyOf(bytes, bytes.length);

        for (int i = 0; i < ins.length; i++) {
            String m = ins[i].getMnemonic().toLowerCase();
            int off = i * 4;

            if (i == 0 && m.equals("cmp")) {
                patched[off]     = 0x1f;
                patched[off + 1] = 0x20;
                patched[off + 2] = 0x03;
                patched[off + 3] = (byte) 0xd5;
                System.out.println("[twice] patch cmp -> nop");
                continue;
            }

            if (m.startsWith("str") || m.startsWith("stp") || m.startsWith("stur")) {
                patched[off]     = 0x1f;
                patched[off + 1] = 0x20;
                patched[off + 2] = 0x03;
                patched[off + 3] = (byte) 0xd5;
                System.out.println("[twice] patch store -> nop at ins#" + i + " (" + m + ")");
            }
        }

        int lastIndex = ins.length - 1;
        if (lastIndex >= 0) {
            String lastM = ins[lastIndex].getMnemonic().toLowerCase();
            if (lastM.equals("br")) {
                int off = lastIndex * 4;
                patched[off]     = 0x1f;
                patched[off + 1] = 0x20;
                patched[off + 2] = 0x03;
                patched[off + 3] = (byte) 0xd5;
                System.out.println("[twice] patch br -> nop at ins#" + lastIndex);
            }
        }

        Unicorn uc = new Unicorn(UnicornConst.UC_ARCH_ARM64, UnicornConst.UC_MODE_ARM);

        try {
            uc.mem_map(mapStart, mapSize, UnicornConst.UC_PROT_ALL);
            uc.mem_write(modBase, snapshot);

            uc.mem_write(startAddress, patched);

            for (int i = 0; i < 29; i++) {
                long v = reg.reg.get(i).longValue(); // 0..28 -> X0..X28
                uc.reg_write(Arm64Const.UC_ARM64_REG_X0 + i, v);
            }
            long fp = reg.reg.get(29).longValue();
            long lr = reg.reg.get(30).longValue();
            uc.reg_write(Arm64Const.UC_ARM64_REG_FP, fp);
            uc.reg_write(Arm64Const.UC_ARM64_REG_LR, lr);


            boolean realTaken = (this.ltAddress != 0);
            boolean wantTaken = !realTaken; // 在第二个引擎里我们要“走相反的那条路”

            long nzcvFake = buildNzcvFor(cond.toLowerCase(), wantTaken);
            uc.reg_write(Arm64Const.UC_ARM64_REG_NZCV, nzcvFake);


            uc.reg_write(Arm64Const.UC_ARM64_REG_PC, startAddress);


            uc.emu_start(startAddress, endAddress, 0, 50);

            String brRegName = bropstr.trim(); // "x9" / "x8" ...
            Integer brRegId = jingqi.REG_MAP.get(brRegName);
            if (brRegId == null) {
                System.out.println("[twice] unknown br reg: " + brRegName);
                return;
            }
            long aim = ((Number) uc.reg_read(brRegId)).longValue();
            long aa  = aim - module.base;

            System.out.printf("[twice] alt branch target reg=%s -> 0x%x (off=0x%x)%n",
                    brRegName, aim, aa);

            if (this.bAddress == 0) {
                this.bAddress = aa;
            } else if (this.ltAddress == 0) {
                this.ltAddress = aa;
            }
        } catch (Exception e) {
            System.out.println("[twice] emu error: " + e);
        } finally {
            try { uc.emu_stop(); } catch (Exception ignored) {}
            try { uc.mem_unmap(mapStart, mapSize); } catch (Exception ignored) {}
            try { uc.closeAll(); } catch (Exception ignored) {}
        }
    }


    private static long buildNzcvFor(String cond, boolean wantTrue) {
        int N = 0, Z = 0, C = 0, V = 0;

        switch (cond) {
            case "eq": // Z == 1
                Z = wantTrue ? 1 : 0;
                break;
            case "ne": // Z == 0
                Z = wantTrue ? 0 : 1;
                break;
            case "lt": // N != V
                if (wantTrue) {
                    N = 1; V = 0;
                } else {
                    N = 0; V = 0;
                }
                break;
            case "ge": // N == V
                if (wantTrue) {
                    N = 0; V = 0;
                } else {
                    N = 1; V = 0;
                }
                break;
            case "gt": // Z == 0 && N == V
                if (wantTrue) {
                    Z = 0; N = 0; V = 0;
                } else {
                    Z = 1; N = 0; V = 0;
                }
                break;
            case "le": // Z == 1 || N != V
                if (wantTrue) {
                    Z = 1;
                } else {
                    Z = 0; N = 0; V = 0;
                }
                break;
            case "cs":
            case "hs": // C == 1
                C = wantTrue ? 1 : 0;
                break;
            case "cc":
            case "lo": // C == 0
                C = wantTrue ? 0 : 1;
                break;
            case "mi": // N == 1
                N = wantTrue ? 1 : 0;
                break;
            case "pl": // N == 0
                N = wantTrue ? 0 : 1;
                break;
            case "vs": // V == 1
                V = wantTrue ? 1 : 0;
                break;
            case "vc": // V == 0
                V = wantTrue ? 0 : 1;
                break;
            case "hi": // C == 1 && Z == 0
                if (wantTrue) {
                    C = 1; Z = 0;
                } else {
                    C = 0; Z = 0;
                }
                break;
            case "ls": // C == 0 || Z == 1
                if (wantTrue) {
                    C = 0;
                } else {
                    C = 1; Z = 0;
                }
                break;
            case "al":
            default:
                Z = wantTrue ? 0 : 1;
                break;
        }

        return ((long) N << 31) |
                ((long) Z << 30) |
                ((long) C << 29) |
                ((long) V << 28);
    }

    // 现在已经不用这个函数了，但保留不会影响
    private static int parseRegIndex(String reg) {
        reg = reg.trim();
        if (reg.startsWith("w") || reg.startsWith("x")) {
            try {
                return Integer.parseInt(reg.substring(1));
            } catch (NumberFormatException e) {
                return -1;
            }
        }
        return -1;
    }
}


class Patch1 {
    public long ltaddress, bAddress;
    public AndroidEmulator emulator;
    public long startAddress;
    public long endAddress;

    public Patch1(AndroidEmulator emulator,
                  byte[] bytes,
                  long ltaddress,
                  long bAddress,
                  long startAddress,
                  long endAddress,
                  Module module,
                  long cselAddress
            ,String cond) {

        this.emulator = emulator;
        this.ltaddress = ltaddress;
        this.bAddress = bAddress;
        this.startAddress = startAddress;
        this.endAddress = endAddress;

        Backend backend = emulator.getBackend();
        Keystone keystone = new Keystone(
                KeystoneArchitecture.Arm64,
                KeystoneMode.LittleEndian
        );

        long ltAbs = module.base + ltaddress;
        long bAbs  = module.base + bAddress;



        byte[] nop = keystone.assemble("nop", 0).getMachineCode();
        backend.mem_write(endAddress, nop);
        System.out.printf("[Patch1] NOPed BR instruction at 0x%x%n", endAddress);

        String op1;
        if(cond.equals("eq")){
            op1 = String.format("b.eq 0x%x", ltAbs);
        }else if(cond.equals("lt")){
            op1 = String.format("b.lt 0x%x", ltAbs);
        }else {
            op1 = String.format("b.ne 0x%x", ltAbs);
        }
        long ldraddress=endAddress-8;


        byte[] bltCode = keystone.assemble(op1, (int) ldraddress).getMachineCode();

        long bPc = ldraddress + bltCode.length;
        String op2 = String.format("b 0x%x", bAbs);
        byte[] bCode = keystone.assemble(op2, (int) bPc).getMachineCode();

        backend.mem_write(ldraddress, bltCode);
        backend.mem_write(bPc,         bCode);
        byte[] cur = backend.mem_read(endAddress, 4);
//        System.out.printf(
//                "[Patch1] mem @0x%x = %02x %02x %02x %02x%n",
//                endAddress, cur[0], cur[1], cur[2], cur[3]
//        );
//        long nopStart = bPc + bCode.length;
//
//        for (long addr = nopStart; addr <= endAddress; addr += nop.length) {
//            backend.mem_write(addr, nop);
//        }
//        byte[] patched = new byte[4];
//        int off=0;
//        patched[off]     = 0x1f;
//        patched[off + 1] = 0x20;
//        patched[off + 2] = 0x03;
//        patched[off + 3] = (byte) 0xd5;
//        backend.mem_write(endAddress, patched);

    }

}

之后就特别明显了可以猜出是异或一大段，可以发现

脚本优势

1.unicorn动态计算得到的第二个结果，而非固定的计算，但在patch的效率上来说是比较差的

2.兼容了cmp csel cinc cset lt/eq的情况，并且cmp到br长度兼容达到28字节长度，可以说大部分比较好去除

3.方便后续添加其他条件，

脚本不足

1.本身是unidbg的框架，所以免不了需要补环境的操作。

2.模拟执行到的才能去除，对于有些没有执行到的分支，是去除不了 的

3.变量名比较简陋（
